MKC -SINGLE SPEED REAR DROPS WITH ISO BRAKE MOUNT - MOUNTAIN/ KLUNK CRUISE - 10MM ( 3/8") AXLE -

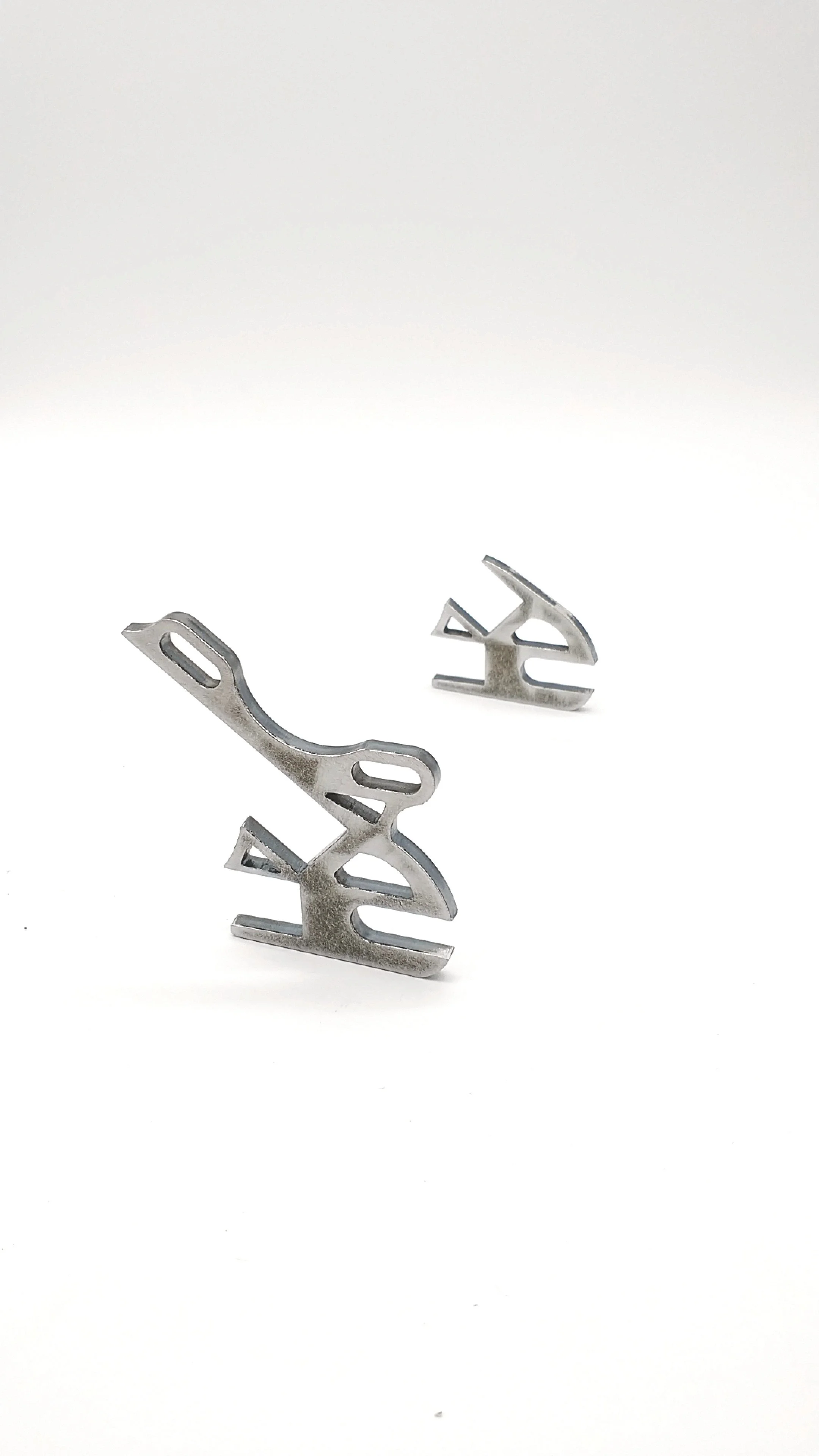

BFS “MKC” REAR DROPOUTS FOR SINGLE SPEED BUILD - ISO SLOT BRAKE MOUNT AND 10MM AXLE
THESE DROPOUTS ARE A GREAT CHOICE FOR SS MTB HARDTAILS , KLUNKER AND CRUSIER STYLE BIKE WITH 26”-29” TIRES
THE SEAT STAY ANGLE IS WIDER TO ACCOMIDATE SMALL TO LARGE FRAME SIZE , SO YOU CAN HAVE LOW TO TALL STAYS FITMENTS., IT ALLOW FOR MORE OF A FREE ANGLE CHOICE. CHAINSTAYS TABS CAN BE USED STRAIGHT OR PUT SLIDE BEND. WILL ACCEPT 14-19MM STAYS , SEAT STAYS WILL WORK WITH 12-19MM STAYS.
ISO DISC BRAKE TAB IS INTERGRATED AND SLOTTED IN CHAIN STAY POSITION AND MAY ACCOMODATE UP TO 180MM ROTOR DEPENDING ON STAY ANGLE.
AXLE SLOT IS FOR 10MM( 3/8”) AXLES - AXLE SLOT IS 26MM
MATERIAL : 4.7MM (3/16”) 4130 PLATE
WEIGHT : 283 GRAMS
SKU: FRM-DOR-MKC-10A-ISOH
