TANGE LR26-A-1 FLATMOUNT DROPOUT 12X 1.5 THRU AXLE

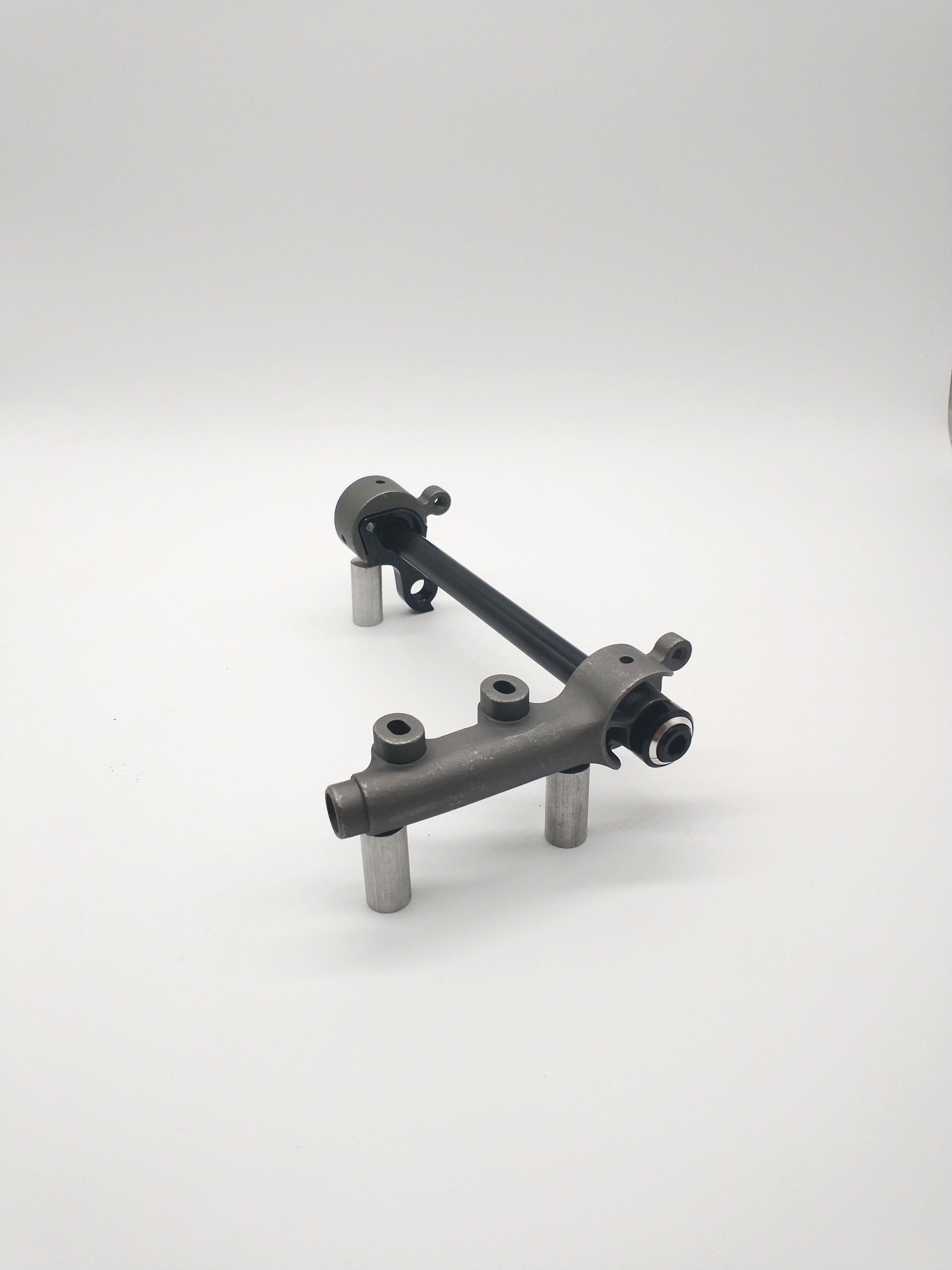

TANGE LR-26-A-1 FLATMOUNT DROPOUT SYSTEM FOR THRU AXLE 12MM X 1.5
THIS DROPOUT ALLOWS FOR FREE ANGLE OF THE SEAT STAY
THE BRAKE SIDE HAS INTERGRATED PLUG FOR CHAINSTAY DROPOUT INTERFACE . THE OD OF PLUG IS 14.5MM WHICH WILL ACCOMMADATE MOST CHAINSTAYS WITH A .6MM OR .7MM WALL THICKNESS.
THE HOODS ARE 33MM RADIUS AND 20MM WIDE
HAS A SINGLE M5 EYLET ON EACH FLANGE
HAS INTERGRATED FLATMOUNT BRAKE HOLES WHICH REQUIRE A 27MM FASTENER
FOR HUB SPACING OF 142MM USE A 174MM AXLE WHICH CAN BE PURCHASED BY CLICKING HERE
CLICK HERE FOR DRAWING - THESE DROPOUTS WILL BE ON NEXT BIKECAD RELEASE COMING SOON
WEIGHT 264 GRAMS A SET
SKU FRM-DOR-LR26-A-1
