24MM Ø ZERO UNO PLUS/FAT TIRE S BEND MTB CHAIN STAY 1.0/.7 X 440MM MPO240C2023-2B
DEDACCIAI ZERO UNO 24MM DIAMETER FAT BIKE OR PLUS MTB CHAIN STAY. USE THESE STAYS ON A 73MM BB SHELL OR T4773 OR 91.5 FOR 3” OR LARGER MAX TIRE. USE WITH A 100MM BB SHELL FOR UP TO 5” TIRE DEPENDING ON CLEARANCES. WITH THE BACK BEND YOU STILL HAVE GOOD HEEL CLEARANCE AS WELL.
SKU -TBE-MPO240C2023-2B
30.5X15.7MM/12.5MM Ø TAPER X 1.0/.7 X 440MM

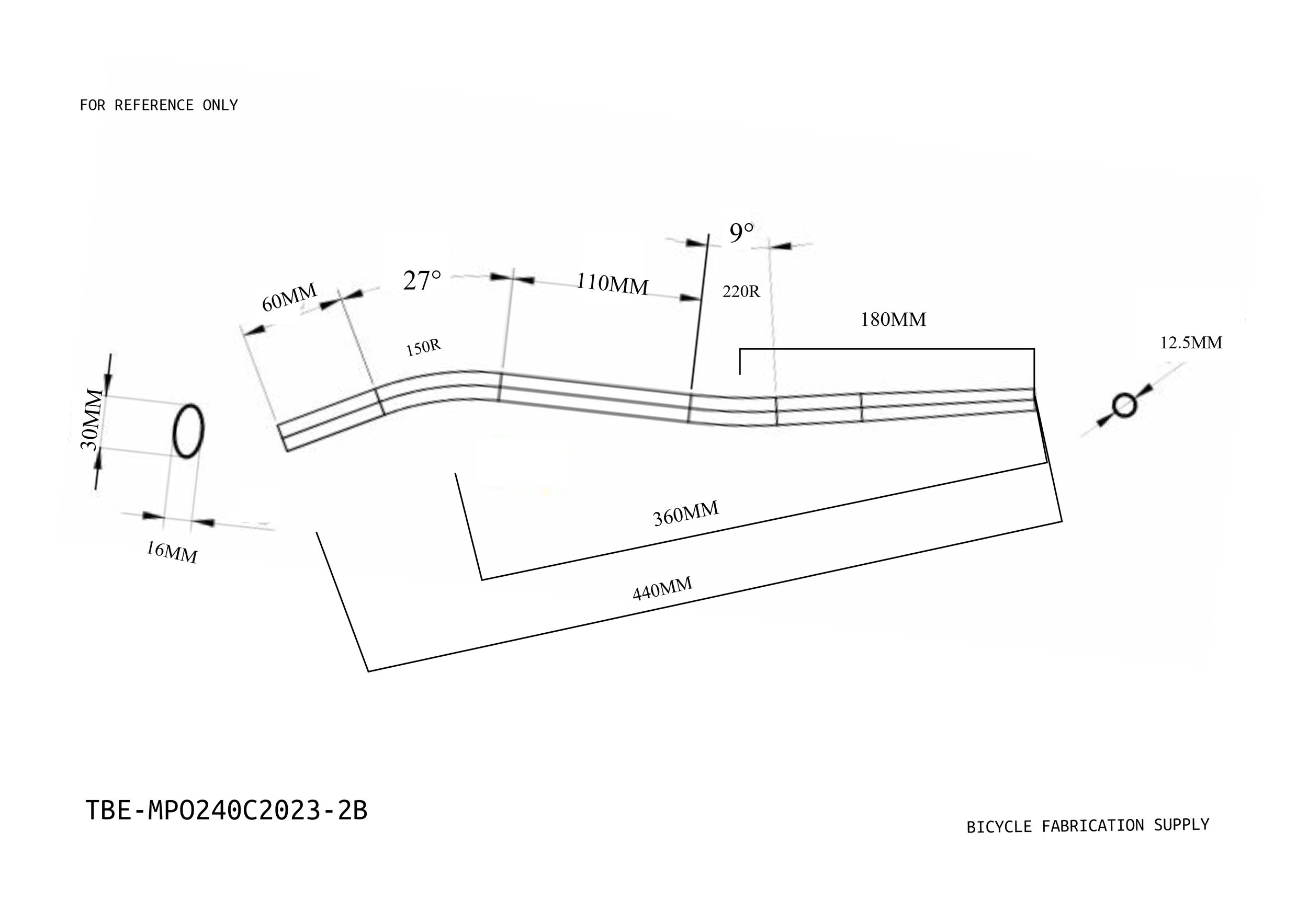

BENDS: 27° @360MM 150R TIRE BEND , REAR BEND 9° @ 180MM 220R REFERENCE DRAWING CLICK HERE
424 GRAMS
25CrMo4 SEAMLESS STEEL
DSR STATE (ANNEALED, COLD WORKED AND STRESS RELIEVED)
TENSILE STRENGTH 65,000 PSI MIN
87,000 PSI MAX
ELONGATION 20% MIN
35% MAX
