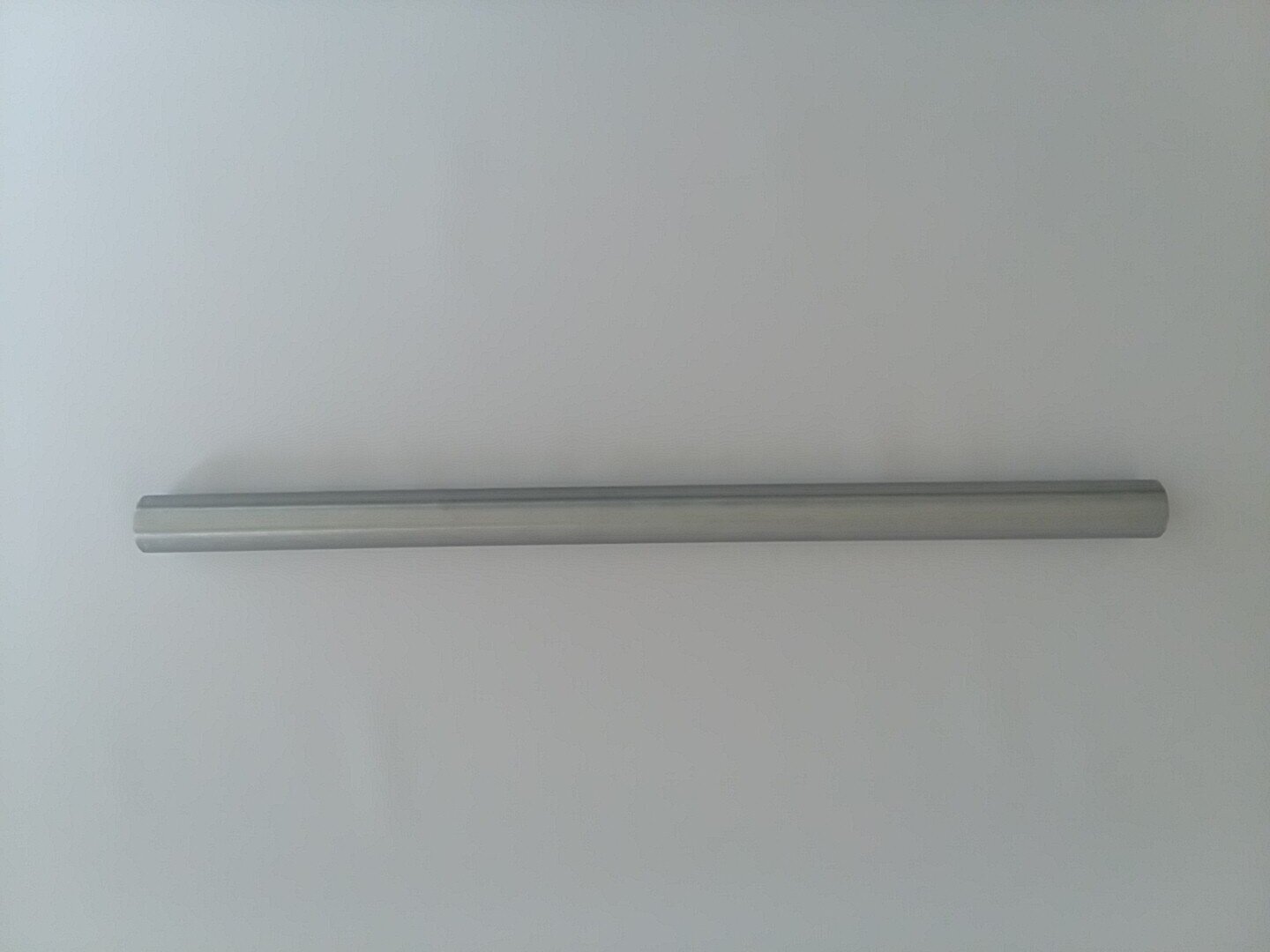

35MM DEDA AEGIS TOP TUBE SCANDIUM - 35MM X 1.2/.8/1.2 X 600MM MTO350U102
DEDACCIAI AEGIS SERIES SCANDIUM 35MM DIAMETER ROUND TOP TUBE - REQUIRES USE OF SCANDIUM FILLER ROD PROVIDED. CAN BE WELDED TO 7005 AND 7020
VERY LIGHT WEIGHT TUBE
SKU -TBEA-MTO350U102 SPEC SHEET CLICK HERE
35MM Ø x 1.2/.8/1.2 HT SIDE X 600MM LONG
WEIGHT - 168 GRAMS
TYPICAL MECHANICAL PROPRIETIES OF SCANDIUM ALLOY TUBING IN T6 STATE:
ULTIMATE STRENGTH > 79770 PSI
YIELD STRENGTH > 71068 PSI
ELONGATION % > 8%
STRUCTURAL ANALYSIS DATA
DENSITY 2.80 G/CM3
MODULUS OF ELASTICITY 71.5 GPA
YIELD STRENGTH > 450 MPA
